Get familiar with electronics
Start your child’s journey by using STEM electronics kits that they can tinker with. Invest in educational toys or even breadboards and components to help your little ones get familiar with the basic parts of electronic circuits and devices.
These tools will help them understand the parts that make up basic electronics. Plus, it will allow them to experiment and build their own circuits without causing any damage or harm. Guide them as they create several possibilities for the circuits until they’re confident enough to start experimenting on their own.
Explain how things work
When your child is more comfortable with STEM electronics kits, it is time to introduce them to the more theoretical aspect of the basics of electronics. To make this easier to understand, you can try demonstrating it through the toys they already have, pictures, or even fun craft projects, like light-up plush toys, bookmarks, or greeting cards!
You can use all these to help your child understand one of the basics about electronics, which is the closed-loop. The closed-loop is made up of three components. The first one is the voltage source, which is where the power or the electricity comes from. The voltage source can come in the form of batteries, generators, or power systems. The second component is the load, which is what uses up electricity to be able to accomplish a function. The load can be anything that needs electricity, such as a fan or a LED bulb. The last component in a closed loop is a circuit, which connects the voltage source and the load. The circuit usually comes in the form of copper sheets, which serve as a pathway for electricity to flow.
After you explore these concepts, your child can learn more about different types of circuits, such as open circuits, short circuits, series circuits, and parallel circuits. You should try explaining these concepts by demonstrating how your electronics at home receive power. For example, if you switch on a light bulb, it will create a closed circuit because the electricity flows from the energy source to the bulb, which produces light. If you switch it off, however, it will create an open circuit, which causes the energy to stop flowing.
Know the basics of a circuit
A circuit is a path for electricity to go along (Circuit sounds a lot like a circle and is a great way to remember the word). There are 3 basic components to build a simple circuit
1. a “source” of electrical power, such as a battery or household wall outlet,
2. a conductive “path,” such as wire and,
3. a “load” that needs electrical power to operate, such as a lamp
Can you complete the circuit in the image below and make the LED light up?
*REMEMBER ! – Electricity will only flow when the circuit is closed i.e- the source is connected to the load using the path in a circular manner. It is also important that the circuit is closed in the right way so electricity can move in the right direction from (+) to the (-) side.
Understand how Breadboard works
Breadboard is the white rectangular plastic board with lots of tiny holes. This board works as a base and allows you to insert wires and electronic components to make a circuit. You can easily remove and reconnect the different parts as you like. As long as you have created a circular path for the electricity to flow through, the circuit will work. You can use and reuse breadboards to make all sorts of fun electronic projects like this tilt-activated nightlight.
Most breadboards have numbers, letters and signs (+ and -) written on them. They will help you locate the holes so you can follow the instructions when you are building your own circuits. The letters are on the columns and numbers are along each row. For example, A15 is the hole where column A meets row 15.
The breadboard is made up of sets of 5 metal clips connected to each other. Columns A-E and columns F-J are electrically connected along each row. For example, Hole A1, B1, C1, D1 and E1 are all connected to each other. But they are NOT connected to F1, G1 holes or to the holes in the next row i.e A2, B2 or F2, G2.

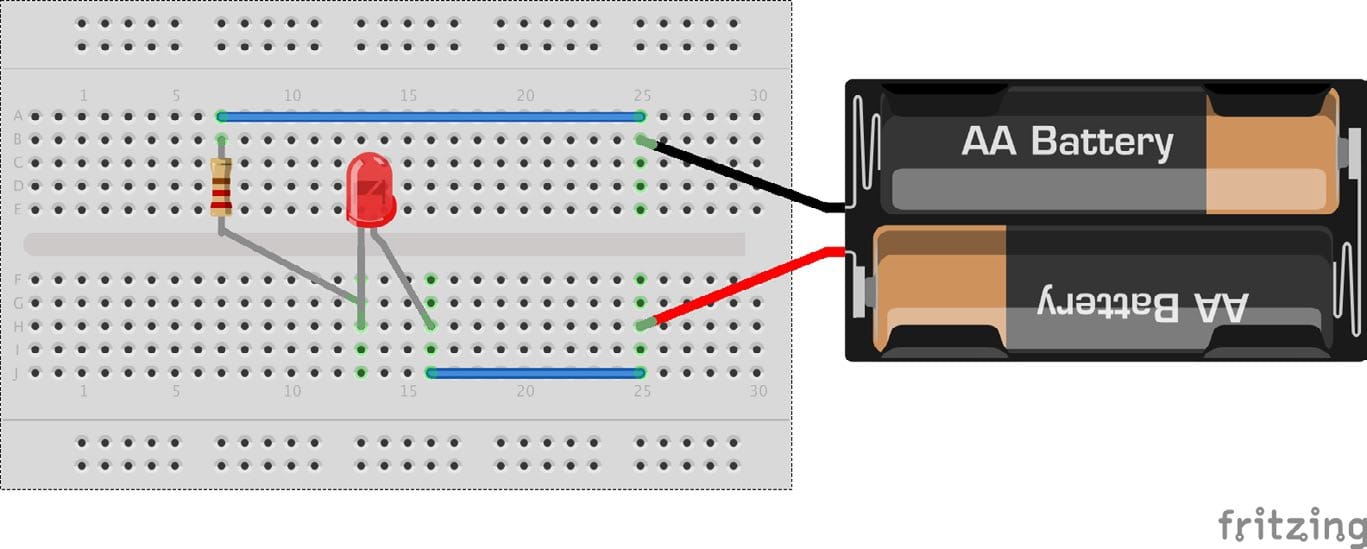

Build a simple circuit using a Breadboard !
1. Insert batteries into the battery holder.
2. Insert (+ side) into H25. Insert the other end (- side) into B25.
3. Insert one end of wire in A25 and other end into A7

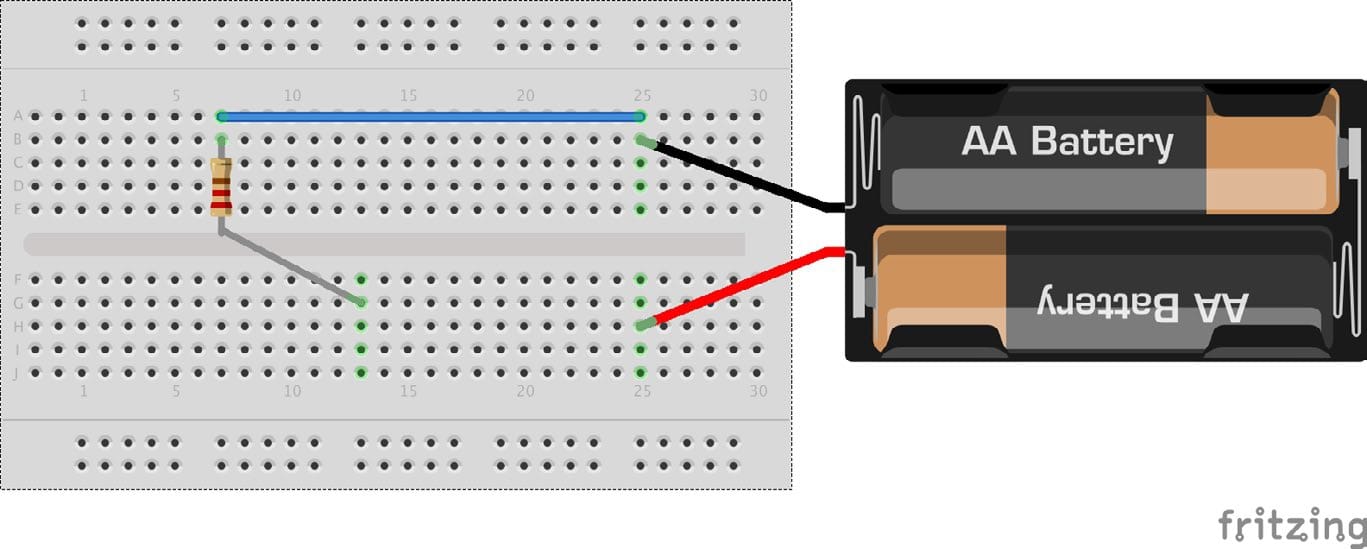

4. Connect resistor: Insert the ends into B7 and G13
5. Insert short leg of LED in H13 and long leg (+) into H16
6. Insert the shorter wire into J16 and J25
The circuit is complete and the LED should light up!
Basics Electronics Definitions
We live in a world where technology is being upgraded day by day. But do you have any idea how these tech gadgets work?
Have you ever wondered how a solar calculator works even if its battery is dead? Or how the electrician selects the perfect switch that must be installed for a particular load? To find these answers, let’s learn about electronics today.
To begin our discussion, let’s first understand the types of material that are available, and what types of material we can use in building our electric circuit. Then we will explain some basic definitions that we use in electronics.
As we know, there are many materials available on the earth, but not every material can be used for building electric circuits. Materials that can are classified into conductor and insulator.
Conductors are materials which allow electric current to pass through. The word “conductor” itself defines its function. For example, copper, iron, aluminum, and silver are good conductors of electricity. These metals have the ability to conduct electric current because their atoms have free electrons in their outermost orbit.
An insulator does not allow electric current to pass through it. Plastic, rubber, and wood are insulators. These materials block the flow of electric current because their atoms do not have free electrons in their outermost orbit.

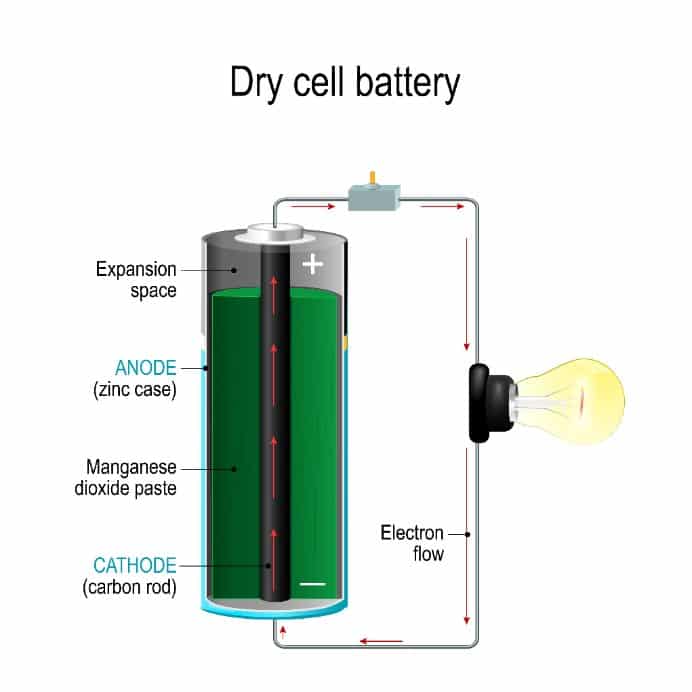

A closed loop through which electrons flow when a power supply is connected to the loop.
The flow of electrons from one terminal of a power supply to another terminal.
The direction of the flow of electrons is from the negative terminal to the positive terminal of the power supply, but the direction of the flow of electric current is from the positive terminal to the negative terminal. This is because everything flows from higher potential to lower potential. So, after the development of electron theory, this electric current was renamed “conventional electric current.”
The unit of electric current is Ampere. It is denoted by “A.”
Electric Power Source
Does simply connecting wires together in a circuit generate electric current? Of course not.
We need an electric power source which will push the electrons through the circuit and generate the current.
These powers are available in two states:
1. AC Power: AC (alternating current) is a standard form of electricity that we get in our homes. All appliances, such as air conditioners, refrigerators, fans, and televisions, use AC power. These appliances cannot work on a battery.
It is called “alternating” because the graph of the current forms a wave. In one half cycle the current is positive, and then it becomes zero at one point, and then on the other half the current is negative.
We can observe the phenomenon of AC using a mobile phone camera. Open the camera and turn on expert mode. Then point the focus of the camera on a lightbulb and decrease the shutter speed slowly until you see fluctuation in the light of the bulb. This fluctuation that you observe is due to the alternating current.
2. DC Power: DC (direct current) is a form of electricity converted from AC. We can store DC power in a battery so it can be used to power remote devices like mobile phones, watches, and electric vehicles.
The name “direct” is given because of its waveform, which is either only positive or only negative.
The unit of measure of AC or DC power is volt and it is denoted by “V.”
An electric load is a device that consumes electric power. Electrical loads are of two types:
a. DC powered electrical load
b. AC powered electrical load
a. DC powered electrical load: A DC powered load takes DC power as its input energy. LED bulbs, DC fans, toy motors, TV remotes, wrist watches, and wall clocks are DC powered electrical devices. These loads have one property in common: they all have resistance. Resistance is the property of a material that resists (slows down) the flow of electrons. This slow down results in a loss of energy from the electrons.
Similarly, an LED bulb glows when the electron slows down in the load, resulting in a loss of energy. This loss of energy allows the bulb to glow.
The unit of resistance is ohm and it is denoted by “Ω.”
The resistance of a load depends on the types of material used in the load, temperature, and dimensions of the material used.
The resistance of a conductor is much lower than the resistance of an insulator.
Resistance can be thought of as a straight road that has a lot of speed bumps. When a vehicle approaches the speed bumps, the driver slows down the vehicle. The application of brakes results in a loss of energy in the form of heat.
b. AC Powered electrical load: An AC powered load takes AC power as its input energy. In the USA the standard AC voltage for domestic purposes is 110 V. A fluorescent lamp, ceiling fan, air conditioner, and refrigerator are AC powered electrical loads.
Besides resistance, AC powered loads also have the properties of inductance and capacitance. Inductance is a property of a material that is only developed when AC power is fed into it. The inductance of an electrical conductor opposes any change in electrical current flowing through it. Capacitance is the ability of a material to store charges.
In a DC powered circuit, Ohm’s law gives us the relationship between electrical current, voltage, and resistance.
Certain conditions are to be followed before applying Ohm’s law in any given circuit:
1. Ohm’s law is only applicable in DC powered circuits because Ohm’s law is only the relationship between resistance, voltage, and current. In an AC circuit we also have inductance and capacitance, so Ohm’s law can not be applicable.
2. The temperature of the circuit should be constant. This is because the resistance of a load varies with temperature, and when we are applying Ohm’s law, we keep the resistance of the load constant.
Statement of OHM’s law
The current flowing in a DC circuit is directly proportional to the applied voltage in the circuit when the temperature is kept constant.
V α I
To remove the proportional sign, we need to add a constant term, and we already know the resistance of the load is kept constant when Ohm’s law is applied.
So, V = IR
a. The resistance of the circuit in the voltage-current relation shown in the graph.
b. The value of resistance at points P, Q, and T respectively.
Experiment with more advanced projects
Once your child understands the basic concepts of STEM electronics kits, you can help satisfy their curiosity even more and expand their knowledge by moving onto more advanced projects.
They can start by learning how to solder or how to use transistors. From here, older kids, and those who are a little more advanced, can start looking into what a PCB is. Found in most modern devices today, PCBs, or printed circuit boards, are a type of electrical circuit with all its components contained within a mechanical structure. Kids with more advanced knowledge can even start by designing their own PCBs! They can also start to use microcontrollers, which help control the functions of an electronic device. With all this knowledge in mind, your child can explore different possibilities through their own motors, robots, and other electronics.
Basic Electronic Components

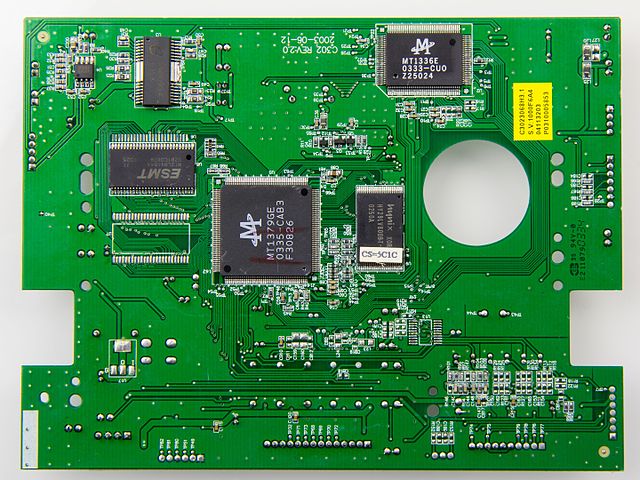

Electronic components are any components in an electronic system which are connected by soldering or a printed circuit board (PCB) to create an electronic circuit with a particular function. Electronic components form the building blocks of any electronic device. In our daily lives we see lots of devices controlled by these components.
What are electronic devices?
Electronic devices, such as mobile phones, TVs, DVD and CD players, and digital cameras, use electronic components and a power supply to do certain work.
Building Blocks of Electronic Devices
The basic electronic components include:
5. LED (Light Emitting Diode)
7. SCR (Silicon Controlled Rectifier)
And many more …
A resistor is an electronic component that restricts the flow of electric current. In an electric fan, the speed regulator controls the current flowing into the fan motor, thereby decreasing or increasing the speed of the fan. Similarly, in a steam iron the temperature controller regulates the flow of current into the heating elements and thereby controls the hotness of the iron. In both cases, the resistor controls the current’s flow and therefore regulates the output.

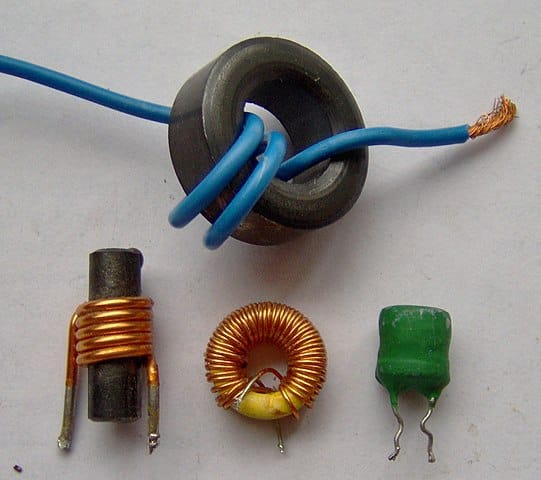

An inductor stores electrical energy in the form of a magnetic field. It is also called a coil or choke. It is used in fluorescent tube lights to regulate the flow of electric current.

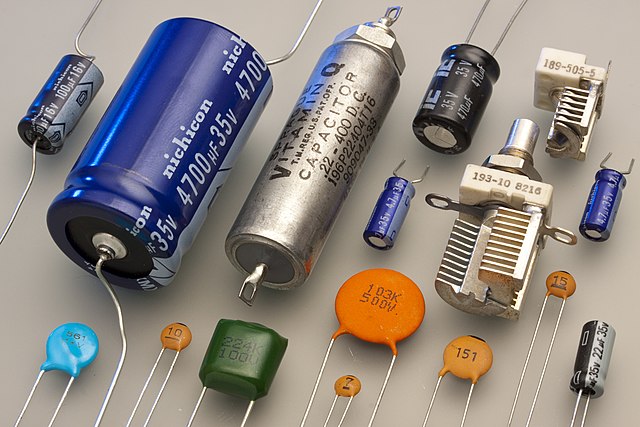

A capacitor stores electric energy in the form of an electric field, or electric charge. This is an alternative to small batteries for storing energy. These are used in X-ray machines for a quick burst of energy when an image is taken, and in ceiling fans.

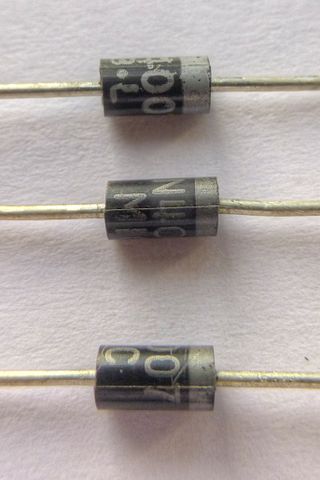

A diode is used for pushing current flow in only one direction. This is achieved by offering very low resistance to the current in one direction and very high resistance in the reverse direction.

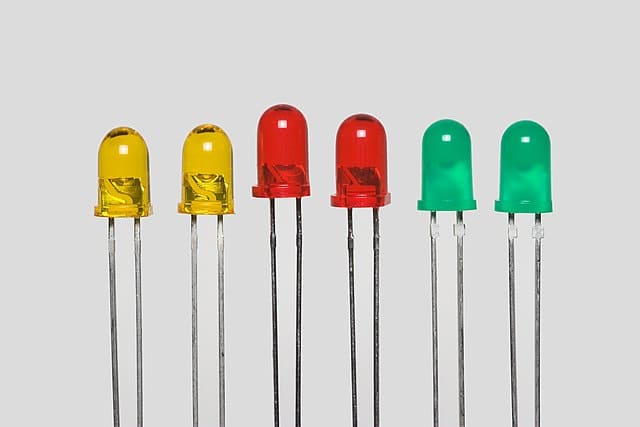

A Light Emitting Diode emits light when current passes through it. These are widely seen on every modern electronic device, be it your TV remote, a CC Camera on/off indicator, or the taillight in your car. Modern cars are equipped with LEDs for their lighting requirements.
A transistor is a semiconductor used to amplify or switch electrical signals and power. Unlike other components that have two terminals, the transistor has three terminals.

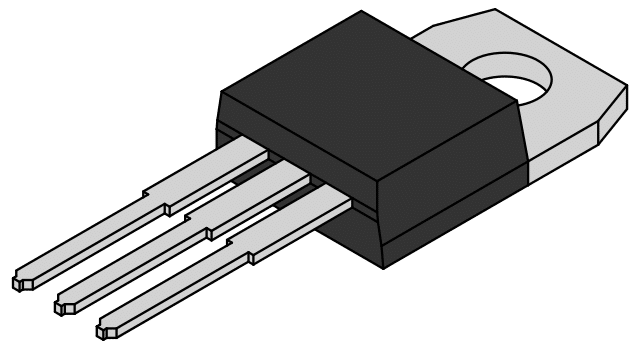

A Silicon Controlled Rectifier is needed where power control of medium- to high-voltage appliances is required. It is used in lamp dimming, regulating currents to industrial electric equipment, motor control, and similar applications.
All the electronic components discussed above come in various shapes, sizes, and capacities to meet the standards and customized needs of devices.
Advancements in Technology
Primarily, these components are used in combination to receive, store, and circulate energy as needed in the form of voltage, current, and charges. The way these components are connected is called a circuit. Generally, a circuit is printed using metal strips on epoxy-coated boards called “printed circuit boards,” as shown below, onto which these components are also soldered.
With the evolution of technology, the functionalities of multiple individual components can be consolidated and integrated into single components, which are called IC Chips (integrated circuit chips). Depending upon the number of components and processes embedded into a single chip, these are classified as Small Scale Integration (SSI), Medium Scale Integration (MSI), Large Scale Integration (LSI), and Very Large Scale Integration (VLSI).
A Final Word:
All electronic gadgets, smartphones, laptop, game stations all carry PCBs with integrated circuit. You can do your own circuit by purchasing and assembling the electronic components to make a mini gadget.
